Voltage-Controlled Digital Delay Module – Barebones Pack
USD$125.00
+ shipping & handling
Ordering Info
What is a ‘Barebones Pack?’
A ‘Barebones Pack’ is a low-cost alternative to an assembled module. Barebones packs contains just enough components to provide full functionality, no extras, “frills”, or face plates.

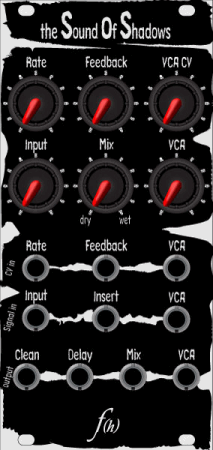

What is the Sound of Shadows?
The Sound of Shadows (SoS) is a voltage-controlled (VC) digital delay module based around the PT2399 echo IC1 from Princeton Technology – which was, by the way, originally designed for Karaoke equipment.
The SoS is essentially two separate modules: a delay and a voltage-controlled amplifier (VCA). The focus of the SoS was the delay while the VCA was thrown in because half of an LM13700 IC was unused, so the VCA is very basic.
As with all f(h) products, the SoS was engineered towards maximizing functionality while keeping cost as low as possible. If some aspects of the unit seem awkward, it is most likely due to this. The goal is to make unique, useful, enjoyable, and affordable instruments, not just hoover out your bank account.
And remember: every instrument has its quirks and unexpected aspects, so RTFM! All the way through! Specific quirks are mentioned in the description of the particular feature they apply to, so please read this through before emailing!
*Details, samples, updates, and discussion can be found on the SoS thread on MuffWiggler.com.*
| Documentation: | Connection Points | Panel Wiring |

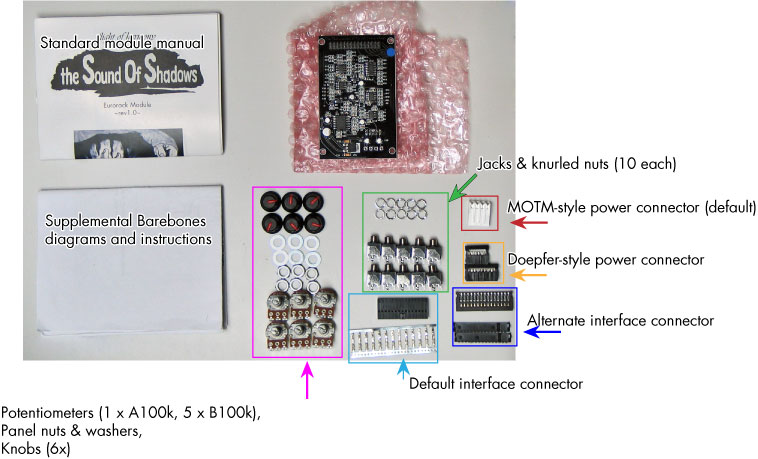

The Sound of Shadows Barebones Pack contains:
| Specs: | ||
|---|---|---|
| Supply Voltage | ±12VDC | |
| Supply Current (max draw @ ±12V) | +12V: 51mA | -12V: -21mA |
| Max. Input Voltage (@ ±12V) | 10Vp-p | |
| Max. Output Voltage | 6Vp-p | |
| Input & Ouput (I/O) coupling | Direct* | |
| Output Impedance | 1kΩ | |
| Control Voltage (CV) inputs | ±Vsupply | |
| CV input coupling | Direct | |
| CV input impedance | 100kΩ | |
| Mounting Depth | 50mm (~2″) | |
| Delay Length | Min: ~31.3ms | Max: ~342ms |
.
